Custom Kits Assembled Just for YOU!

Click on the part numbers below for pricing and a complete list of parts that are included with each kit.

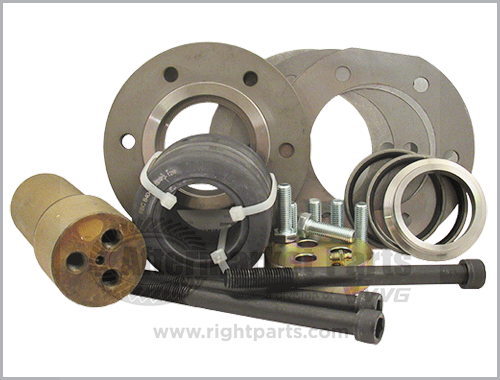

TOP HINGE FIELD REPAIR KIT
John Deere: AT190834
John Deere: T184599KIT
Aftermarket Parts: 28606000K

For John Deere: 540G-II thru 748G-III, Serial Numbers 576603 and up.
All H Series machines. Also, E, G, & G-II Series machines with updated frame ears.

BOTTOM PIN KIT
John Deere: T184606KIT
Aftermarket Parts: 28606001K
NEW part - T224314 Spacer!

For John Deere: All updated E, G, and GII. GIII thru Serial Number 604613. Timberjack Skidder Models: 360, 460, 560 'D', 360DC, 360DG Serial Numbers 604614 thru 630435.

BOTTOM PIN KIT
John Deere: T224229KIT
Aftermarket Parts: 28606002K
NEW part - T224314 Spacer!
NEW part - T224255 Cover!

For John Deere: 540GIII/548GIII Serial Numbers C630436 thru C666892, 540GIII/548GIII Serial Numbers 640614 thru 630435, 640GIII/648GIII Serial Numbers 604614 to end of Series 748GIII Serial Numbers 576603 thru 604613, 748GIII Serial Numbers 604614 to end of Series, All H Models.

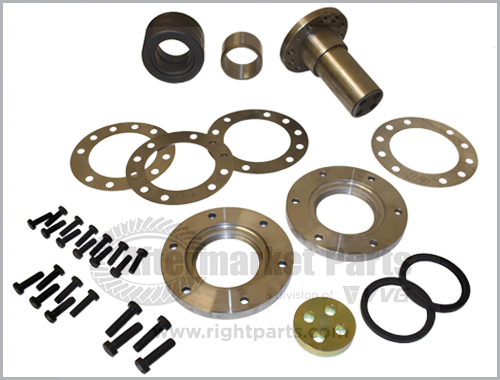

TOP PIN KIT
for Timberjack Skidders - newest 60 Series
Timberjack: F291300KIT
Aftermarket Parts: 28629021K

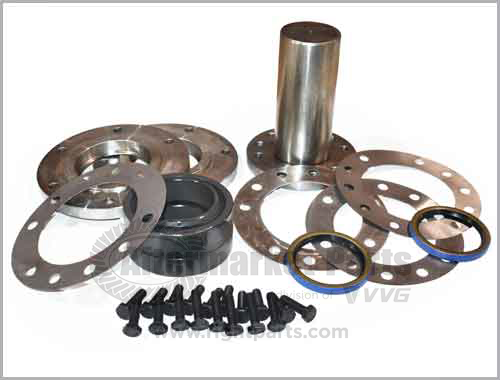

BOTTOM PIN KIT
for Timberjack Skidders - newest 60 Series

Timberjack: F288160KIT
Aftermarket Parts: 28629022K

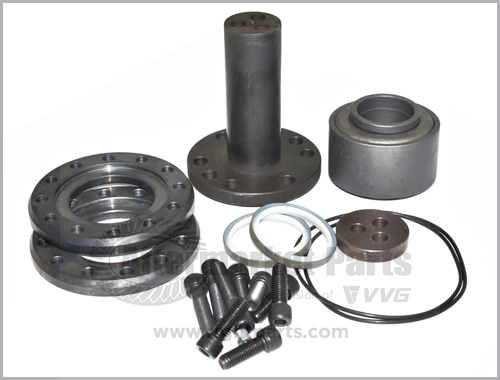

TOP HINGE / REAR CRADLE PIN KIT
for Clark Ranger Skidders

Ranger: 1923916KITT
Ranger: R1923916KITT
Aftermarket Parts: 41003000K

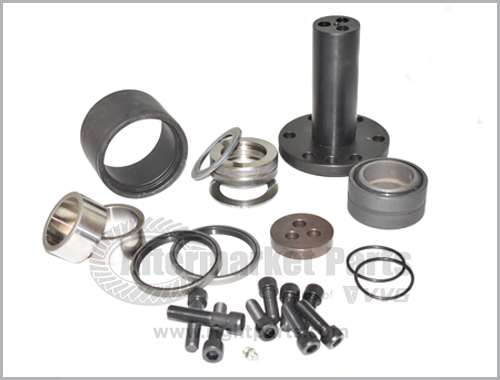

SUSPENSION BOTTOM HINGE FRONT CRADLE PIN KIT
for Clark Ranger Skidders

Ranger: 1923916KITB
Ranger: R1923916KITB
Aftermarket Parts: 41003001K

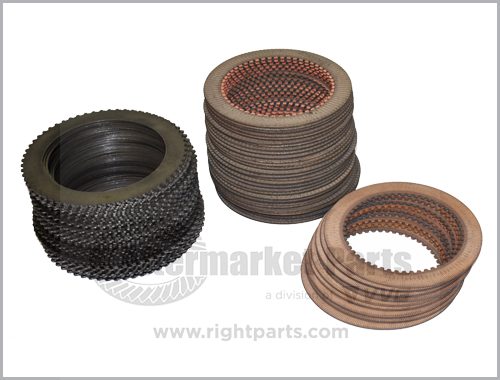

DISC KIT
for Clark Transmissions

Clark: KIT32400
Aftermarket Parts: 48903003K

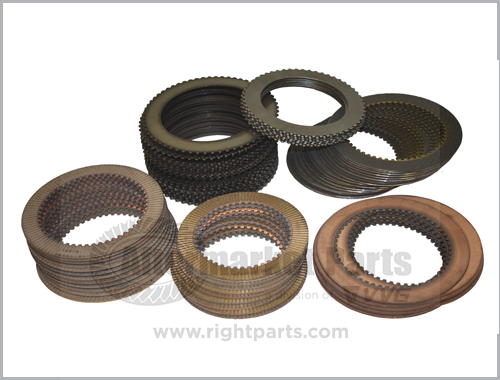

POWERSHIFT TRANSMISSION
DRUM DISC KIT

for Clark Transmissions

Clark: KIT32600
Aftermarket Parts: 48903004K

DISC KIT
for Clark Transmissions

Clark: KIT28300
Aftermarket Parts: 48903000K

POWERSHIFT TRANSMISSION
DRUM DISC KIT

for Clark Transmissions

Clark: KIT28400
Aftermarket Parts: 48903002K




GASKET AND SEAL KIT
for Clark Transmissions, 32000 Series

Timberjack: 32001
Clark: KIT32001
Aftermarket Parts: 28403010K

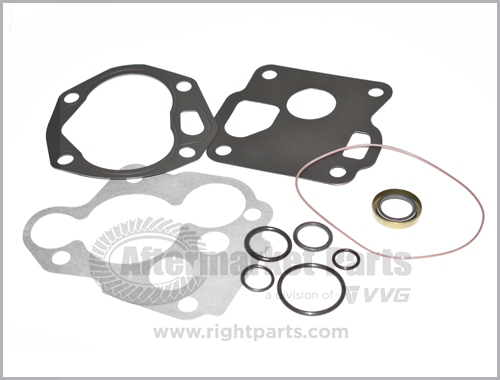

GASKET AND SEAL KIT
for Clark Transmissions, 32000 and 33000 Series - Transmission Charge Pump.

Aftermarket Parts: 28403011K

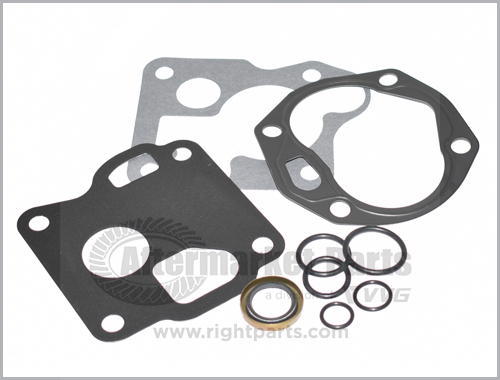

GASKET AND SEAL KIT
for Clark Transmissions, 28000 Series - Transmission Charge Pump.

Aftermarket Parts: 28403007K

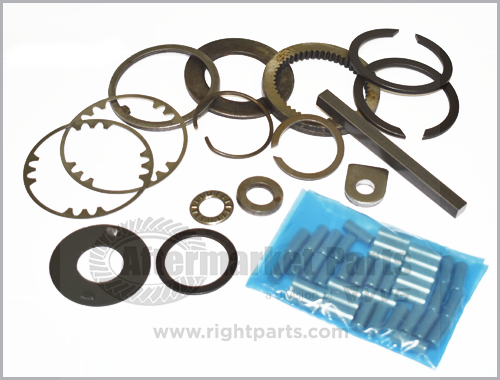

SMALL PARTS KIT
for New Process 542 Transmissions

New Process: SP310-50
Aftermarket Parts: 28922000K

You can also use this kit for a New Process 442 overhaul but you will have a few extra parts.

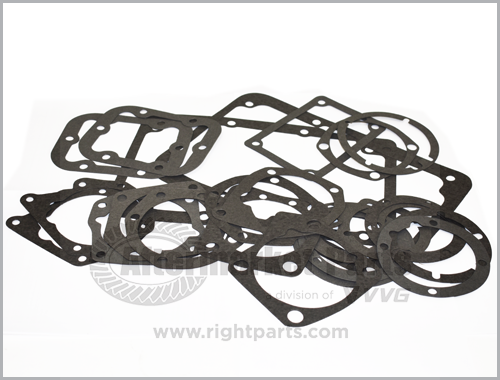

TRANSMISSION GASKET KIT
for New Process 441, 442, 541, 542
Tamrock Loaders: 69040718
Aftermarket Parts: 28322000K

Kit includes ALL gaskets for the models listed. 28422000 Reverse Box Gasket is sold separately.

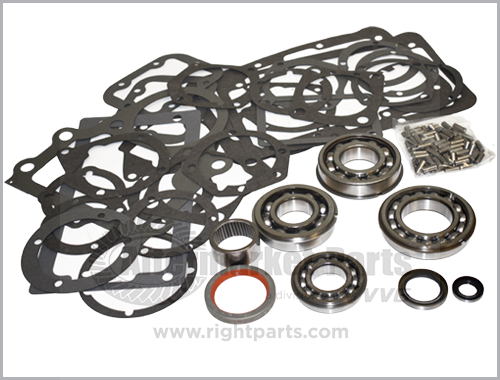

BEARING, SEAL AND GASKET KIT
for New Process 441R Transmissions
Aftermarket Parts: 28201000K

We have even included the Reverse Box!!

BEARING, SEAL AND GASKET KIT
for New Process 442 Transmissions

Aftermarket Parts: 28201002K

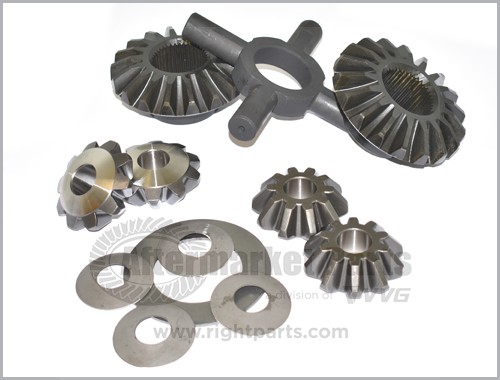

DIFFERENTIAL SPIDER KIT
for Timberjack 240, 380, 450 and 480T - WR7 Spider Kit
- Locking Differential Axle.

Aftermarket Parts: 28607015K

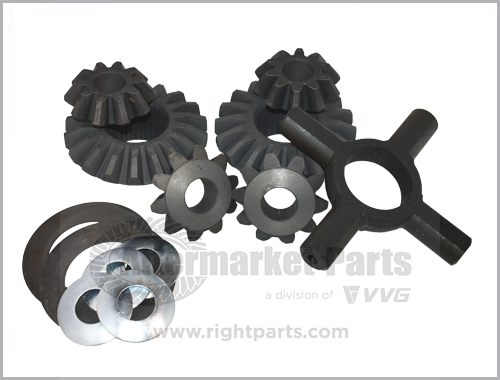

DIFFERENTIAL SPIDER KIT
for WR3 Axles for Timberjack 225, 230, 230-f (forwarder), and 240

Aftermarket Parts: 28607009K

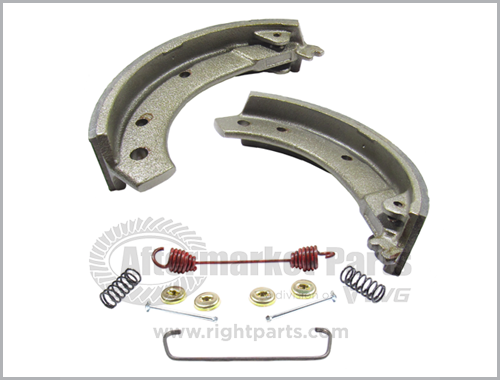

DRUM BRAKE SHOE AND SMALL PARTS KIT for New Process Transmission Cases
Timberjack: 400420K
Timberjack: 111510K
Aftermarket Parts: 29125000K

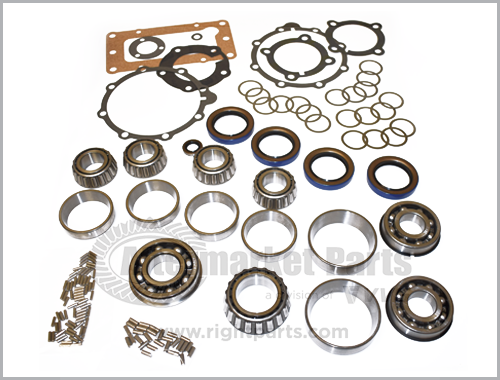

GEAR BOX BEARING, SEAL AND GASKET KIT for New Process Transfer Cases
Aftermarket Parts: 28201001K



Seal Gasket and Shim Kit
Aftermarket Parts: 28429003K
Timberjack Forwarders: 230F, 610
Timberjack Skidders: 225, 230, 240

Differential Ring Gear and Pinion Kit
Aftermarket Parts: 62707000K
Replaces Franklin Part Number 26007022/1511225

Exhaust Muffler Kit
Aftermarket Parts: 58606000K
Timberjack: 560DG John Deere: 748G-III
